Compressor modelH8001CC0
Displacement @ 60 Hz266,10[m³/h]2
Condenser: Refrigerant circuit volume37,7[dm³]3
Connections: Refrigerant outlet35 s.7
Net weight508[kg]8
Condenser PED categoryIII5
Displacement @ 50 Hz221,75[m³/h]1
Connections: Suction80 s.[mm]6
Condenser: Water circuit volume19,1[dm³]4

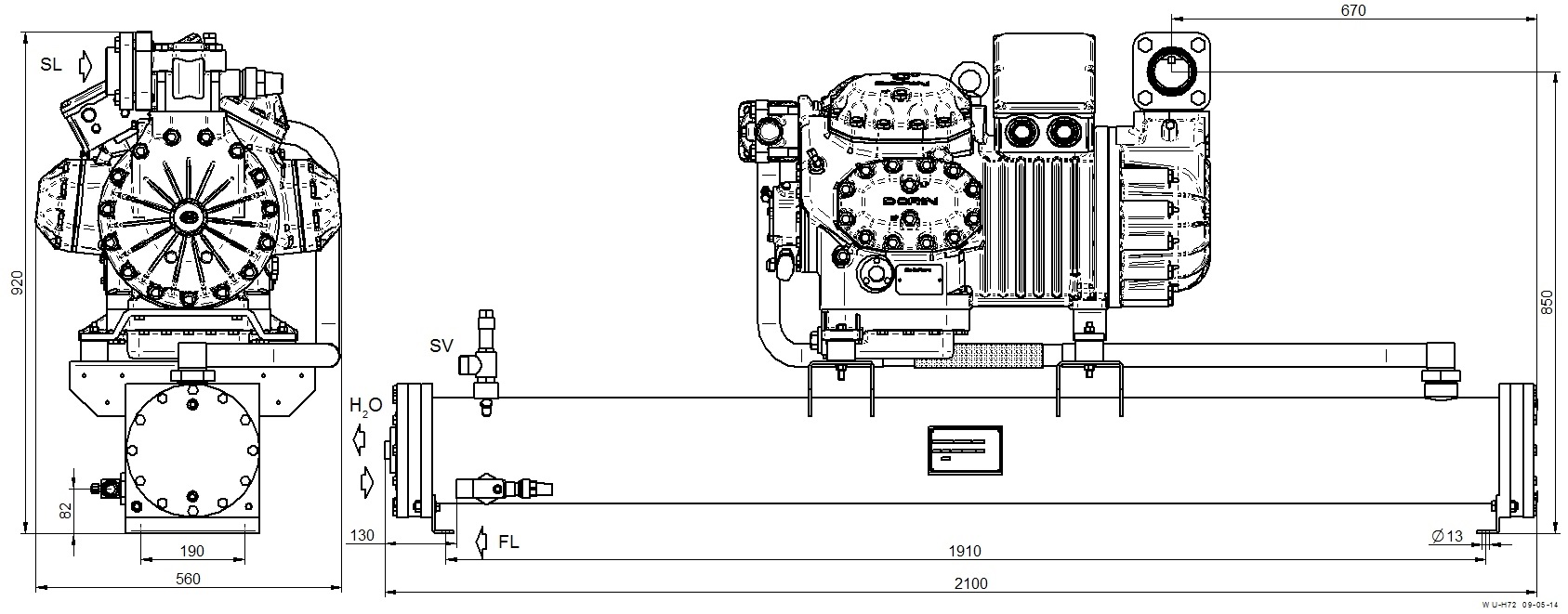

WU-H8001CC - Water Cooled Condensing Unit WU Series | DORIN

Title Save
Water-Cooled Condensing Units 1LTZ022_WU_11_2024.pdf
Operating Instructions Condensing Units 1LTG677-10.pdf
Declaration of Conformity Condensing Units 1LTG930_07_DC_EAU_AU_RU_WU.pdf
