Compressor modelH3500CS0
Motorfans: Current consumption (tot.) @50Hz12[A]7
Sound pressure (free field) 5 m @50Hz57,1[dBA]18
Net weight1014.1[lb]15
Motorfans: Air Flow (tot.) @50Hz1024126[CFH]3
Sound pressure (free field) 1,8 m @50Hz66,0[dBA]16
Motorfans4×500[n° × Ø]11
Motorfans: Power @50Hz4×680[n° × W]5
Motorfans: Condenser capacity @60Hz4×12[n° × µF]10
Motorfans: Condenser capacity @50Hz4×12[n° × µF]9
Sound pressure (free field) 1,8 m @60Hz67,2[dBA]17
Motorfans: Current consumption (tot.) @60Hz15.52[A]8
Receiver volume24,5[L]12
Displacement @ 60 Hz5404[CFH]2
Motorfans: Air Flow (tot.) @60Hz1152319[CFH]4
Sound power @50Hz82,1[dBA]20
Displacement @ 50 Hz4503[CFH]1
Sound pressure (free field) 5 m @60Hz58,3[dBA]19
Connections: Suction54 s.[inch]13
Motorfans: Power @60Hz4×880[n° × W]6
Connections: Liquid7/8"14
Sound power @60Hz83,3[dBA]21
AU4-H3500CS - Semi Hermetic Condensing Unit AU-H6 - Air | DORIN

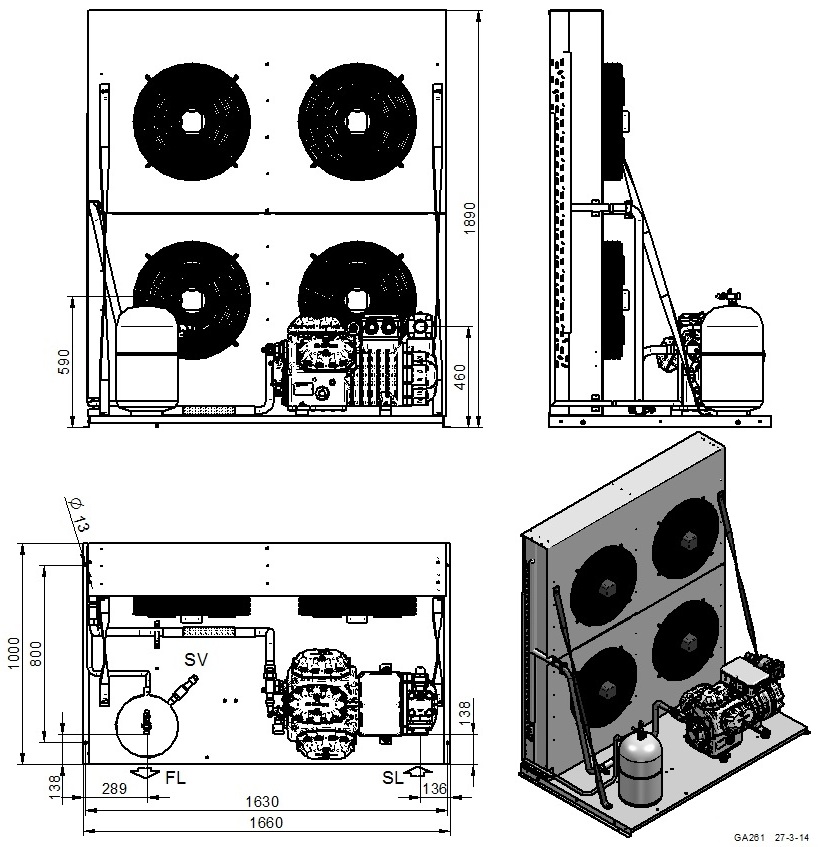

FL - Refrigerant outlet
SL - Suction service valve
SV - Safety valve
